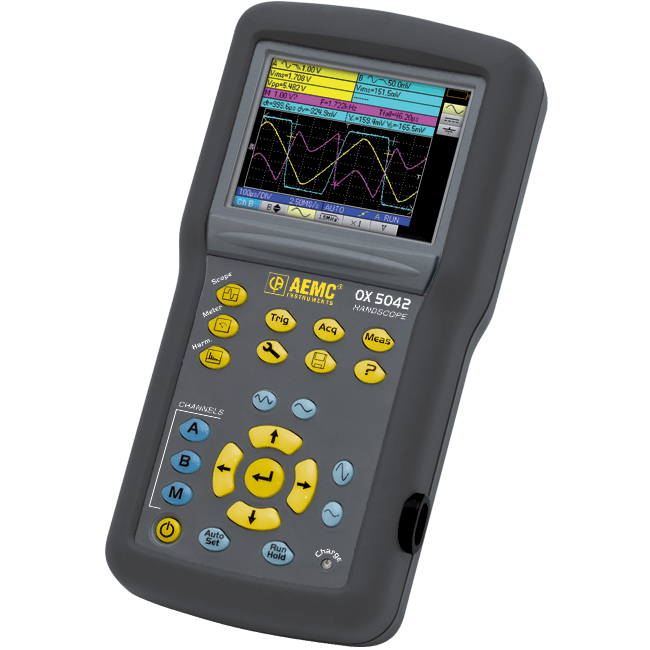

The compact, shockproof, IP54, Handscope Oscilloscope Model OX 5042


  • Two isolated channels
  • 40MHz oscilloscope
  • 2 Independent 8000-count TRMS Digital Multimeters
  • 3.5″ color LCD screen with LED backlighting
  • Integrated interactive multilingual help function
  • 2MB recording data storage
  • Communication via isolated USB SCPI protocol

The compact, shockproof, IP54, Handscope Oscilloscope Model OX 5042 can be comfortably held in one hand. The Handscope is an ergonomically designed instrument equipped with a color screen and LED backlighting for precise, crisp data display. Integrated multilingual help screens are available at all times to make it simpler to use.


The Model OX 5042 combines three measuring instruments in one

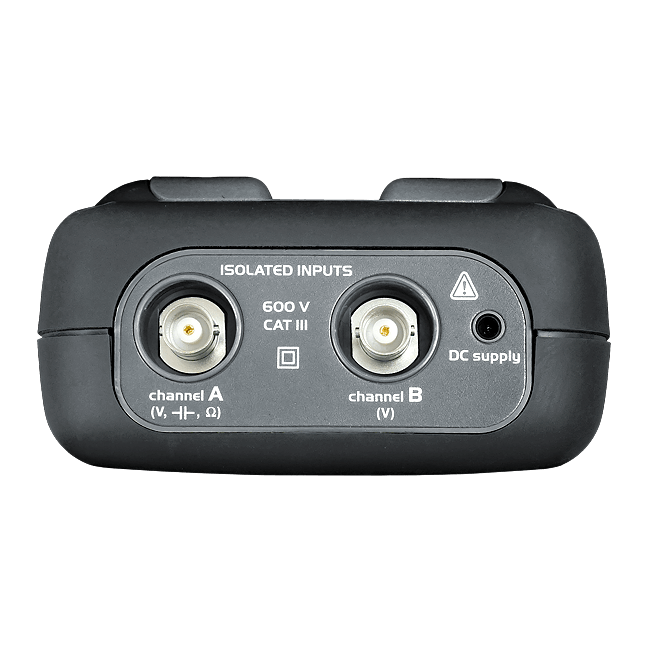

  • 2 fully isolated channels, 600V CATIII
  • 40MHz oscilloscope, range 5mV to 200V/div
  • Independent 8000-count multimeter with power measurements
  • Built-in harmonic analyzer out to the 31st harmonic (fundamental between 40Hz and 450Hz)
  • 2 MB of storage are available for recording data. In the multimeter mode, it is possible to store graphic recordings of 2700 measurements from 5 min to 1 month.
  • Isolated USB communication with the SCPI protocol is available. This makes it simple to program the instrument remotely with the supplied SX-METRO software. This product has been developed using an Eco-Design approach to reduce its environmental impact and is supplied with a 3-year warranty.
