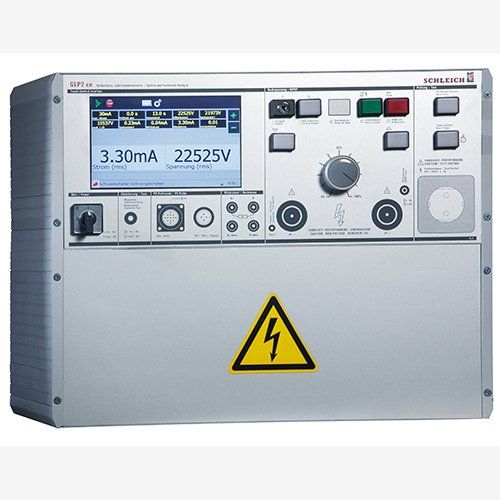

Schleich GLP2-ce AC/DC Hipot Tester

GLP2-ce Combination tester with up to 25 test methods

The new generation of the GLP2 tester is a technological quantum leap. So much technology in this size can only be found at SCHLEICH. Based on our modular concept, it is compact and handy and offers an enormous variety of testing possibilities with precise, intelligent test sequences.  Its accuracy, its flexible application possibilities, the many interfaces, the integration into your company network, the fast test time and the optimally coordinated software ensure a fast return on investment

Based on Windows CE®, our new GLP2-ce testing devices offer numerous possibilities for the application as single or combination testers.

With consistently improved measurement and control technology, the GLP2-ce testers have the usual compact and handy design.  GLP2-ce testers can be operated in server-based networks. Test programs can be loaded from the testers and the test results can be sent back to the PC, where they are stored and processed. With Windows CE® integrated in the testers, this is very convenient.

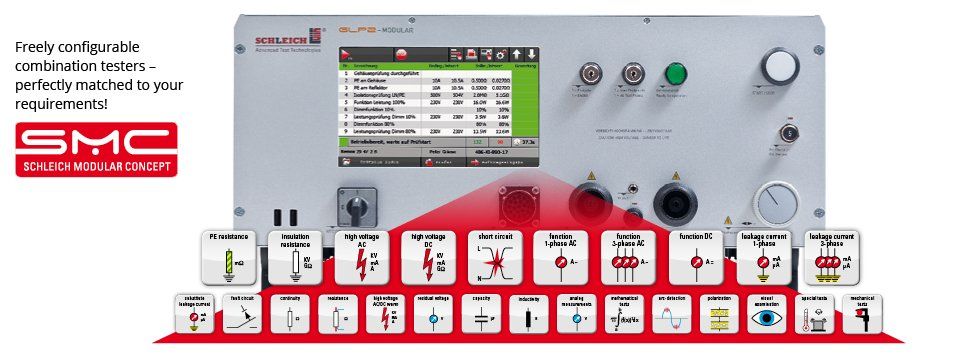

Customized Modularity

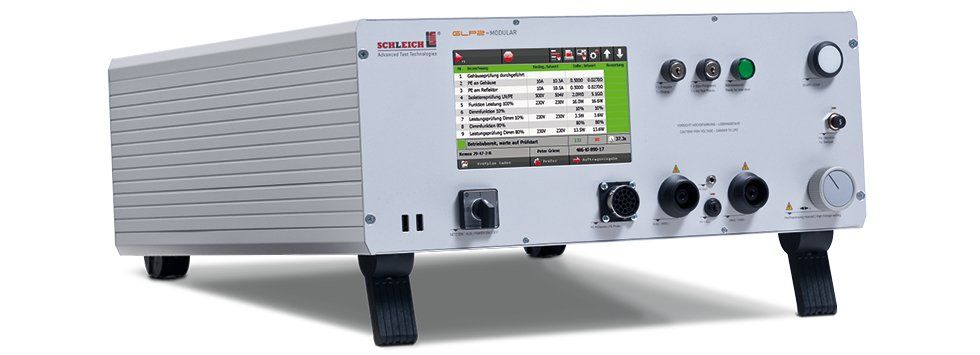

The GLP2-MODULAR provides unlimited possibilities to configure a tester perfectly matching to our customer´s individual specifications and expectations.


The unique multi-combination option is based on the Schleich Modular Concept. This concept has been developed to create customized, cost-effective testers, perfectly matching to your requirements and applications.


This modularity is realized by assembling all test methods in one compact tester in an innovative housing concept instead of installing several single testers in one big cabinet. This flexibility not only offers you a huge price benefit, furthermore each tester contains our engineers´ experience from over 14.000 installations. This experience flows consistently and without any compromise in further developments.

Based on Windows CE®, our new GLP2-ce testing devices offer numerous possibilities for the application as single or combination testers. With consistently improved measurement and control technology, the GLP2-ce testers have the usual compact and handy design.


GLP2-ce testers support the integrated automatic switch-over between all low-voltage and high-voltage tests. Therefore, the test object can be tested automatically in one test process without reconnecting the test connections. GLP2-ce testers are ideal for applications in serial production, no matter whether the test results are documented or not. Of course, these testers can also be used for type tests and material testing in laboratories.


The innovative touch TFT display, which also allows to enter numbers and letters, makes the GLP2-ce tester one of the most user-friendly universal tester on the market. The testers can, of course, also be operated via external standard PC keyboard, mouse and/or bar-code scanner.


In addition to thousands of test programs, the integrated 4GB memory can also store huge quantities of test results. This gives you the certainty to store test results of many years in the tester. You can save them on a USB stick or via an integrated interface on a PC. The GLP2-ce devices can control thermal transfer printers, allowing you to print type labels for your products directly after the test.

Top of Menu

Universal testers for all kinds of electric products

Class leading equipment features

PE / ground bond test up to 200 A

insulation test up to 10 kV

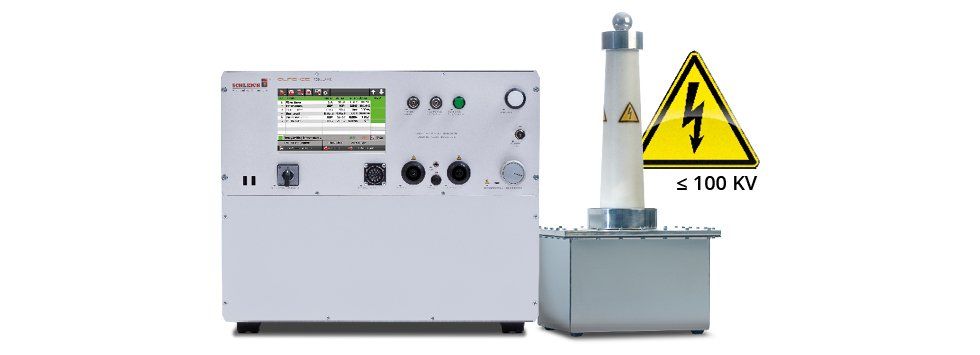

high-voltage test AC up to 100 kV

high-voltage test DC up to 100 kV

leakage current test 30 mA – 1 MHz

medical leakage current test 30 mA – 1 MHz

functional test 1- and 3-phase up to 120 A

for all combinations of safety- and functional tests

precision measurement technology for all test methods

PLe, SIL3, Kat4 Safety circuit (depending on device variant and degree of risk)

high process reliability

traceable calibration certificate included

customizable configurable testers and customized solutions

for 1 and 3-phase test objects

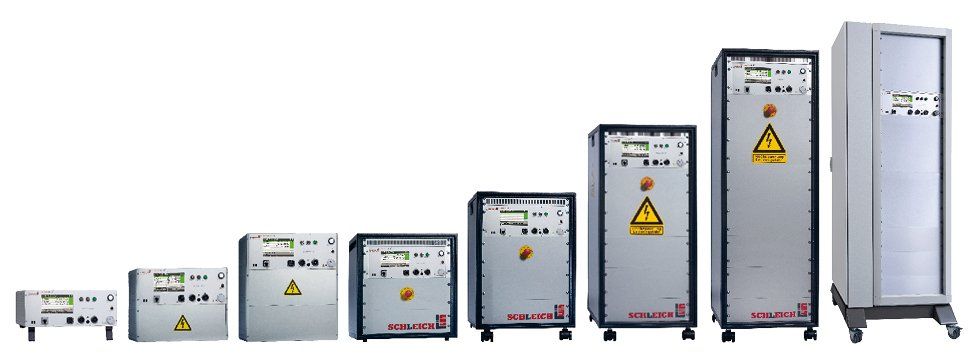

different housing designs

up to 250 programmable test connections

switch matrix modules for all types of test methods

multi stations with up to 3 test stations

test methods fully electronic controlled

full- and semi automatic running tests

manual tests

intuitive operating concept with 7″-touch display plus HDMI-interface

additional input with keyboard and mouse

reading of any 1D- and 2D-barcodes

Ethernet, Profibus, WLAN, USB and serial interfaces

communication via RS232 and/or SCPI-standard commands

data base for test plans and results

user administration

test report printout

freely-configurable label print for thermal transfer printers

several label printers controllable

full network connectivity

possibility for remote maintenance or remote calibration

remote control option for automation

perfect for OEMs

integrated “PLC-functionality” with freely-programmable script-language

Top of Menu

Automation. Interfaces. & Benefits

Automation and Interfaces.

digital I/O, (input/output 24 V to PLC)

RS232 via SCHLEICH communication protocol

LAN via SCHLEICH communication protocol

LAN via SCPI commands

LAN via TCP/IP socket communication (individual special software required)

PROFIBUS

PROFINET

EtherCAT

CANopen

individual special solution …




Benefits of measurement technology at a glance.

Measurement technology


rrecise and fast measurements

TRMS – true R.M.S. measurement

R.M.S.- and peak value measurement

effective- and apparent current measurement, cosφ

effective- and apparent power measurement

PE/ Ground AC


PE/ Ground resistance AC

10 – 200 A AC, adjustable, electronically controlled

6,12,18 V AC

PE/ Ground DC


PE/ Ground resistance DC

1 – 200 A DC, adjustable, electronically controlled

Insulation DC


insulation resistance

30 – 10.000 V DC, adjustable, electronically controlled

100 kΩ – 10 GΩ

„warm insulation resistance test”

High-voltage AC


50 – 100.000 V AC, adjustable

with safety current limiting max. 3 mA

without safety current limiting max. 2 A

ARC-detection

„Warm high-voltage test”

High-voltage DC


50 – 50.000 V DC, adjustable, electronically controlled

with safety current limiting max. 4 mA

without safety current limiting max. 100 mA

„warm high-voltage test”

Function AC


1- and 3-phase

range 1 – 690 V AC

max. 120 A

apparent-, active and reactive/ idle power

cos φ

incl. short-circuit test

Function DC


von 1 – 500 V DC

max. 120 A

incl. short-circuit test

Leakage current


according to standard EN60990 & EN60601 & various UL-Standards

0,1 μA – 30 mA

R.M.S., peak value, DC-/AC share

Frequency range up to 1 MHz

medical

patient leakage current measurement

patient auxiliary leakage current

touch current measurement– between 2 test probes

patient interfaces 8 – extendable on request

operational ground of the test object

two test probe connections

insulated contactings S2 & S3

Equivalent leakage current


according to standard with conversion to any rated voltage

Residual voltage


1- and 3-phase

Resistance


1 mΩ – 500 MΩ

4-wire technology

Inductance


impedance measurement via integrated measuring bridge

4-wire technology

Capacity


capacity measurement via integrated measuring bridge

4-wire technology

Internal resistance


battery´s internal resistance

1 μΩ – 10 Ω

4-wire technology
